CHD100TQX Compact Multi-functional Bin Washing Machine

1、Dual-mode modular design with versatile versatility for dual applications

The equipment features a split modular design, allowing the cleaning upper unit and trailer chassis to be quickly disassembled and separated. The tractor-trailer mode is ideal for long-distance,multi-point patrol operations, offering flexible mobility without vehicle constraints; the pickup-mounted mode can be directly installed on the truck bed, with its integrated body providing enhanced off-road capability, making it suitable for short-distance, routine operations in fixed areas.Frequent switching between these two modes significantly improves equipment utilization efficiency

2、Upside-Down Rotating Wash for Thorough Deed-corner-free Cleaning

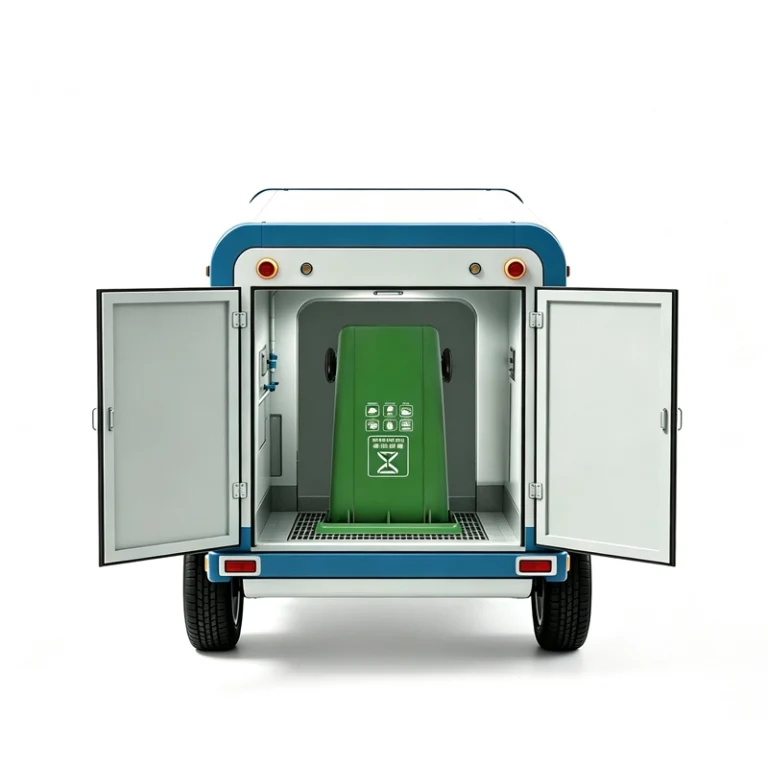

The equipment uses an upside-down washing process with the bin opening facing downward. The trash can is placed inside the enclosed washing chamber, where built-in 360° high-pressure rotating nozzles thoroughly and evenly scrub stubborn stains from the inner walls, rim, and bottom of the trash can. The enclosed chamber design effectively prevents water splashes, ensuring a clean working environment.

3、Recirculation of Clean and Wastewater Volumes Ensures Full Compliance and Prevents Overloading

The system employs a unique operational logic for recirculating tank volumes: at the start of operation, the clean water tank is full and the wastewater tank is empty. During operation, as clean water is continuously consumed, wastewater is automatically collected in the wastewater tank. At no point during the process are both the clean water tank and the wastewater tank full simultaneously, effectively controlling the vehicle’s total loaded weight. This design complies with the weight limits for both trailer and pickup truck configurations, ensuring safe and compliant operation. When the optional water recirculation system is installed, the recirculation and reuse of water does not increase the vehicle’s total weight, maintaining its lightweight and compliant characteristics.

4、Automatic wastewater collection with optional recycling for eco-friendly operations

Wastewater generated during cleaning flows by gravity through the bilge deflector grating and is then forcibly pumped by a dedicated wastewater pump to a storage tank. The equipment comes standard with a direct wastewater discharge mode for centralized, targeted discharge; an optional multi-stage wastewater recycling and purification system is available. This system enables wastewater recycling through layered sedimentation, multi-stage filtration, and antibacterial deodorization, eliminating wastewater overflow and secondary pollution while conserving water and protecting the environment, making it suitable for various environmental regulation scenarios.

5、Multifunctional Handheld Spray Gun,Integrated Cleaning and Disinfection

The standard high-pressure handheld dual-purpose spray gun can independently perform high-pressure rinsing of the trash can’s outer walls, base, wheels, and surrounding areas. It also allows for manual application of disinfectant and specialized cleaning agents, enabling integrated stain removal, sterilization, and disinfection operations—offering rich functionality and convenient operation. When equipped with the optional water recirculation system, purified reclaimed water can be reused for outer wall rinsing, resulting in significant water savings.

6、Manual Loading and Unloading, Stable Structure with Low Failure Rate

The equipment features a manual bin loading and unloading design, eliminating the need for complex hydraulic or mechanical tilting mechanisms. A single operator can quickly complete the entire process—from bin insertion and positioning to cleaning and removal. The structure is simple and reliable, making daily maintenance convenient and keeping operating costs low. The water recirculation filtration components feature a modular quick-release design, allowing for easy cleaning and replacement with minimal maintenance effort.

7、Independent Power System, Unrestricted Outdoor Operation

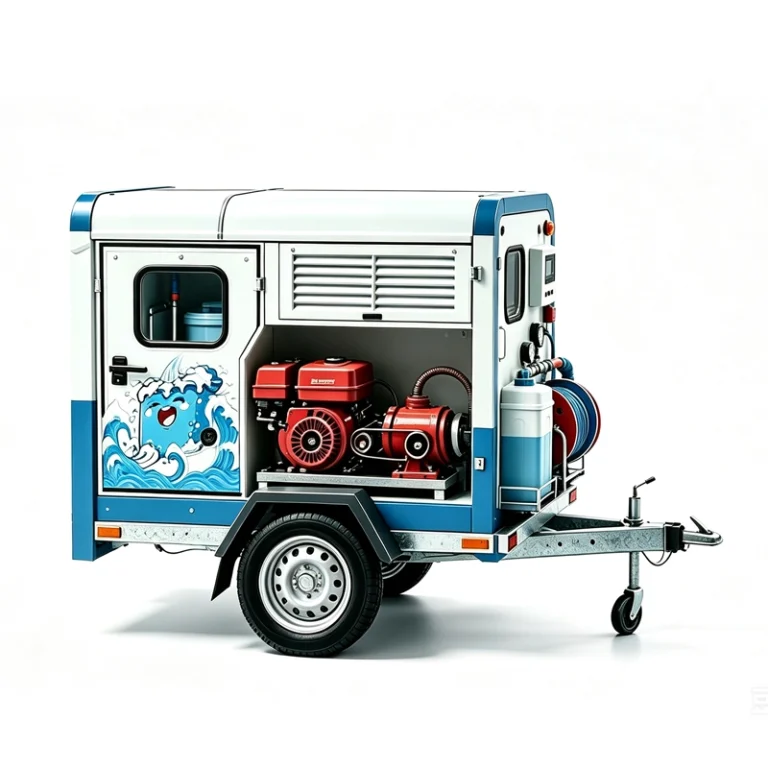

Equipped with a high-performance air-cooled gasoline power unit that directly drives a high-pressure three-plunger pump, the machine delivers ample power and stable pressure. It requires no external mains power and is fully suited for operations in remote, outdoor locations without power sources, offering exceptional environmental adaptability. The optional water recirculation system requires no additional external power source and operates via the machine’s built-in electrical system.

8、Lightweight and Compact Structure, Excellent Maneuverability

The machine features a compact and rational layout with a lightweight body design. With its compact dimensions in both operating modes, it can adapt to complex work sites such as residential communities, alleys, and narrow roads, offering flexible maneuverability and efficient transportation. The optional wastewater recirculation system is integrated into the internal layout, occupying no additional external space and not affecting the machine’s overall maneuverability.

9、Unique Advantages of the Optional Wastewater Recycling System

Optional multi-stage wastewater recirculation purification system, employing a four-stage purification process of “coarse filtration and interception + stratified sedimentation + precision filtration + antibacterial and deodorization.” It features separate circuits for purified water and recirculated water that operate independently; clean water is used for deep cleaning inside the tank, while filtered reclaimed water is used for pre-washing and auxiliary rinsing of the tank’s exterior, achieving water savings of over 70%; The system comes equipped with built-in aeration, antibacterial, and deodorizing functions to prevent wastewater from stagnating, emitting odors, and fostering bacterial and algal growth. It features a one-button switch between “recycling” and “direct discharge” modes, making it suitable for various work sites with or without wastewater discharge facilities, and significantly extending the duration of independent field operations.

Dual-Mode Installation Instructions

Trailer Towing Mode:

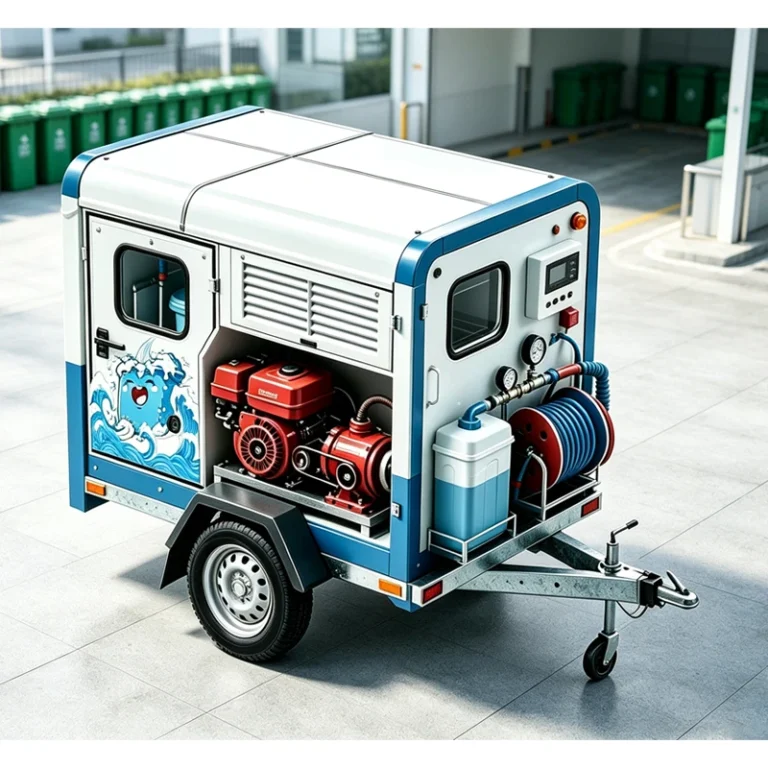

When paired with a light-duty single-axle trailer chassis equipped with its own towing structure, the unit can be towed by various towing vehicles. It functions as an independent equipment unit, allowing for flexible relocation between sites. This mode is suitable for large-scale, multi-location operations, ensuring compliance with weight regulations throughout the entire process and eliminating the risk of overloading.

Pickup Truck Mounted Mode：

Remove the trailer chassis and use the pre-drilled mounting holes on the bottom of the equipment to bolt it directly into the interior of a pickup truck bed. It travels as an integrated unit with the vehicle, taking up minimal space and offering better off-road capability. This mode is suitable for small-scale, routine, and stationary operations.
