This sweeper is a pure electric multi-function sweeper with a dedicated chassis structure that can be replaced with a variety of functional accessories. The road sweeper adopts the advanced design concept of vehicle platform and modular functional accessories, which can quickly realize the switch between functions without tools. All work is done by mechanical structure, electrical system and hydraulic system. It can be widely used in parks, stations, residential areas, ports and docks.
This sweeper is a pure electric multi-function sweeper with a dedicated chassis structure that can be replaced with a variety of functional accessories. The road sweeper adopts the advanced design concept of vehicle platform and modular functional accessories, which can quickly realize the switch between functions without tools. All work is done by mechanical structure, electrical system and hydraulic system. It can be widely used in parks, stations, residential areas, ports and docks.
It breaks through the limitations of traditional single-function designs by centering on a dedicated pure-electric chassis and integrating a highly modular multi-functional attachment system, achieving an intelligent “one machine, multiple functions” operational model. Its most outstanding feature lies in the tool-free, rapid interchangeability of various functional modules, enabling the equipment to swiftly transform from an efficient sweeper into other cleaning tools within minutes. This significantly enhances operational flexibility and equipment utilization rates.
Product highlights

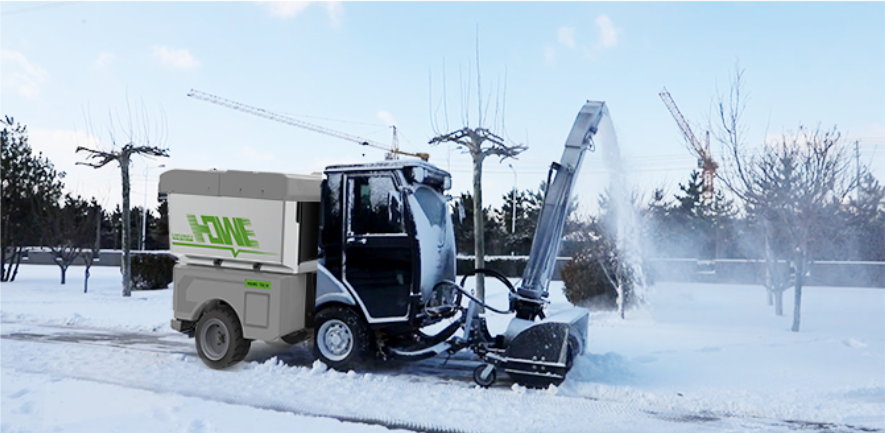

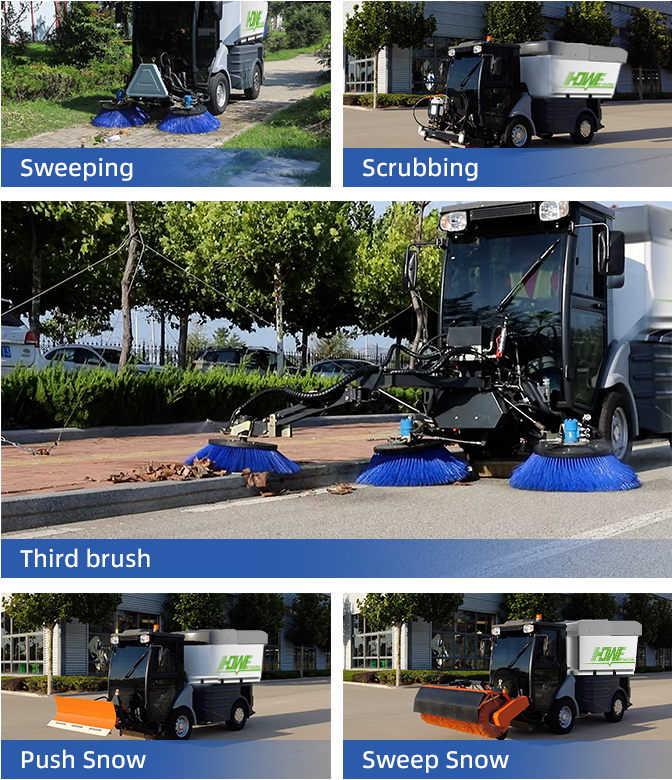

It can realize the function of cleaning, floor washing, third brush, snow pushing, snow sweeping, snow lifting and spreading by replacing the front function accessories or hooking accessories at the rear of the vehicle.
The cockpit adopts ergonomic overall layout design, panoramic glass structure cab, suspension seats, radial tires, multimedia system, steering wheel full hydraulic steering, one-button operating system, reversing image system, cruise control system, hydraulic braking system, four-wheel drive system and drive anti-skid system to ensure the safety and comfort of driving.
The main components of the whole machine, such as power battery pack, walking motor, steering gear, power unit, motor and hydraulic valve group adopt domestic and international first-line brand products, superior performance and reliable quality.
The cleaning system of the whole machine adopts the front layout design which is conducive to ensuring the working quality and efficiency.

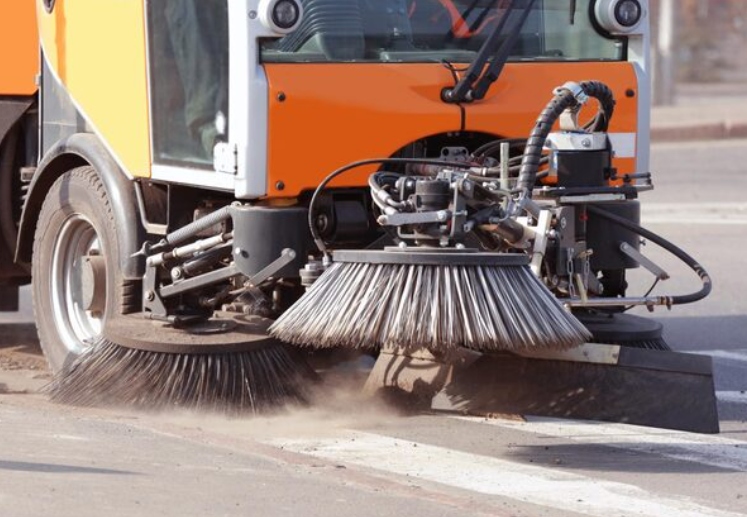

The brush system is equipped with a suspension brush arm structure that can adjust itself according to the road condition.
In the dust removal system, the main dust removal system adopts the special large flow circulating water dust removal system, and the secondary dust removal system adopts the sweep 4 nozzles and the suction nozzle large flow spray dust removal.
The fan of the suction system adopts a centrifugal fan with a wide high efficiency area optimized by multiple CAE simulations, combined with a large diameter suction pipette with a diameter of Phi 180mm, which can help ensure the suction quality.
Performance characteristics
1）Flexible operation

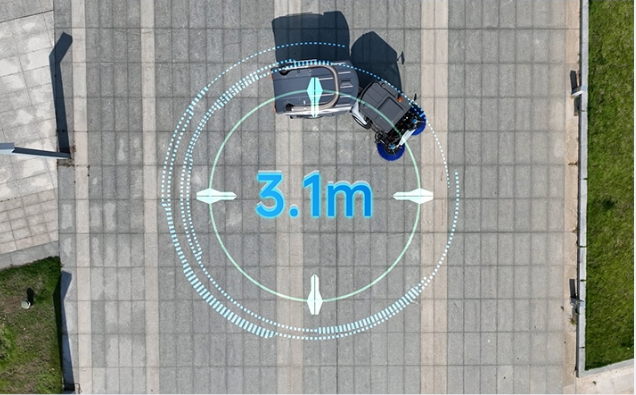

☆The design has a unique middle bidirectional articulated structure, so that the front and rear frame can be twisted and turned in two directions, flexible steering operation and small turning radius.

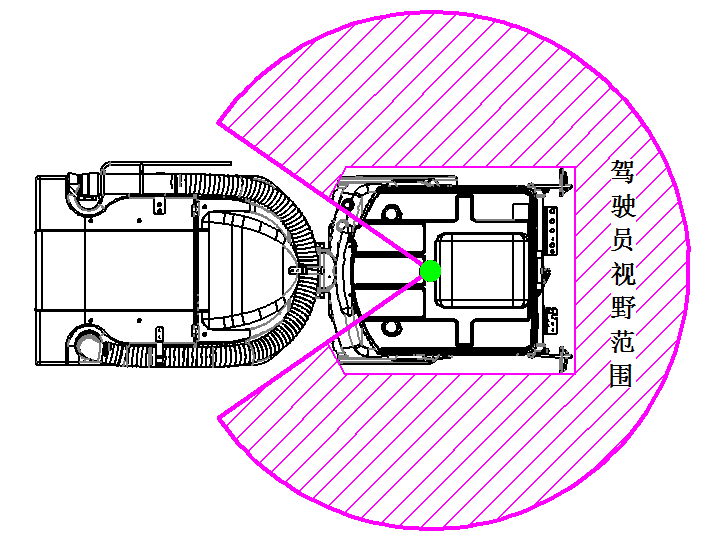

2）Wide view
☆The cab has a panoramic glass structure, allowing a wide line of sight.
3）Comfortable driving environment
☆Equipped with a radio.
☆Equipped with a separate structure of air conditioning and heating, air conditioning for the top structure from the upper air, warm air for the bottom installation structure from the lower air, can make the air conditioning and heating more efficient work, and provide a comfortable driving environment for the driver.
☆Equipped with cruise control function.
☆It is equipped with electronic stepless speed regulation function, so that the driver can drive the vehicle more easily and conveniently.
☆It is equipped with a comfortable driving seat, the cab seat can be adjusted according to the driver’s weight to improve the driver’s comfort, and the seat belt is standard to ensure the driver’s driving safety.
☆Equipped with a comfortable suspension system, the vehicle has a comfortable suspension driving experience of passenger car level.
4）Excellent electrical control system
☆The whole vehicle adopts controller for digital control, which has the characteristics of good shock resistance and high protection level.
☆Just press a key, you can clean all the actions of the implementation.
☆The brush speed can be adjusted stepless according to operation requirements.
☆Equipped with a 7-inch LCD monitor, you can observe the working status of the vehicle at any time and provide reverse video.
5）Stable walking system
The road sweeper is driven by hydraulic stepless transmission system, with mature software algorithm and control system, so that the performance of the walking system is more stable and the quality is more reliable.
Four-wheel drive and two-wheel front drive can be converted to meet the needs of driving and climbing;
The unique anti-skid function can realize self-escape when the wheel slips in the winter snow removal operation;
The vehicle adopts automatic load adjustment transmission control, the driver only needs to step on the pedal to reach the ideal speed, the vehicle will adjust the engine speed according to the load of the vehicle.
6）Multiple collision avoidance design
☆The brush is designed with multiple collision avoidance designs to maximize the protection of the brush from damage caused by collisions.
7）Dust removal system
☆Equipped with a large flow circulating water dust removal system, the circulating water in the box flows to the suction port, under the action of high-speed air flow, fully combined with the suction dust in the suction pipe to achieve dust reduction; The water not involved in the combination passes through the special filter screen on the side panel of the box, and then flows back to the suction port to participate in dust reduction and reuse.
☆Equipped with brush spray dust removal system
☆There are 4 dust suppression nozzles above the brush
8）High discharge
☆The waste bin is made of high-quality stainless steel material, which is not only corrosion resistant, but also high strength.
☆The use of high dump dumping method to dump garbage, reduce the labor intensity of the operator, so that garbage dumping, cleaning and maintenance of the whole machine is very convenient.
9）Self-cleaning function
☆Equipped with a brush pump, can provide high pressure water, high pressure spray gun can be carried with the car, can be cleaned after the vehicle work, to ensure that the vehicle appearance clean.
10）Reliable braking system
The braking mode adopts brake hub braking and hydrostatic transmission automatic braking, all four wheels adopt brake pump braking, while the rear wheel adopts tension braking, and the manual brake handle can realize the parking brake when the vehicle is stationary, ensuring the safety of driving and parking braking.
11）Hand-held retractable straws and auxiliary tools
It is equipped with an extended hand-held retractable straw, which can be used for vacuuming in green belt and other places.
It is equipped with auxiliary tools to clean up blocked garbage in the large tank and can be used as a rocker to operate the emergency hand pump.
12）Emergency system
The cab is equipped with a portable fire extinguisher for emergencies.
Equipped with emergency hand oil pump, when the hydraulic system fails, the trash can be raised for troubleshooting.
| Item | Parameter |
| L | 4625㎜（Brush included） |
| W | 1350㎜ |
| H | 2390㎜（With alarm light） |
| Wheel base (front/rear) | 1110/1120㎜ |
| wheelbase | 1905㎜ |
| Maximum total mass | 5500Kg |
| Curb weight | 3690Kg |
| Dustbin capacity | 2m³ |
| Tank clearing capacity | 270L |
| Sweep width | 2400mm |
| Operating speed | 0-10Km/h |
| Travel speed (two-drive) | 0-40Km/h |
| Rated occupant | 1person |
| Minimum ground clearance | 120mm |
| Maximum gradient (full load) | 20% |
| Body connection mode | knuckle joint |
| Battery model | ENHF-L304-1P96S-A01 |
| Battery voltage | 307.2V |
| Battery capacity | 93.38kwh |
| Drive motor model | TZ210X0153500HR01 |
| Rated power of drive motor | 35KW |
| Rated speed of drive motor | 1500rpm |
| Dumpster material | Stainless steel |
| Discharge method | High dump |
| Discharge height | 1460mm |
Note: Design parameters are listed in the technical parameters table.
