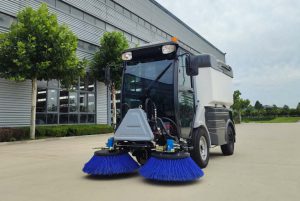

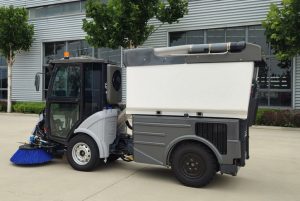

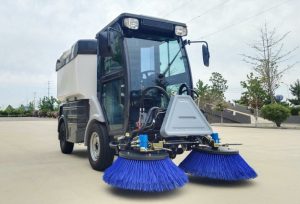

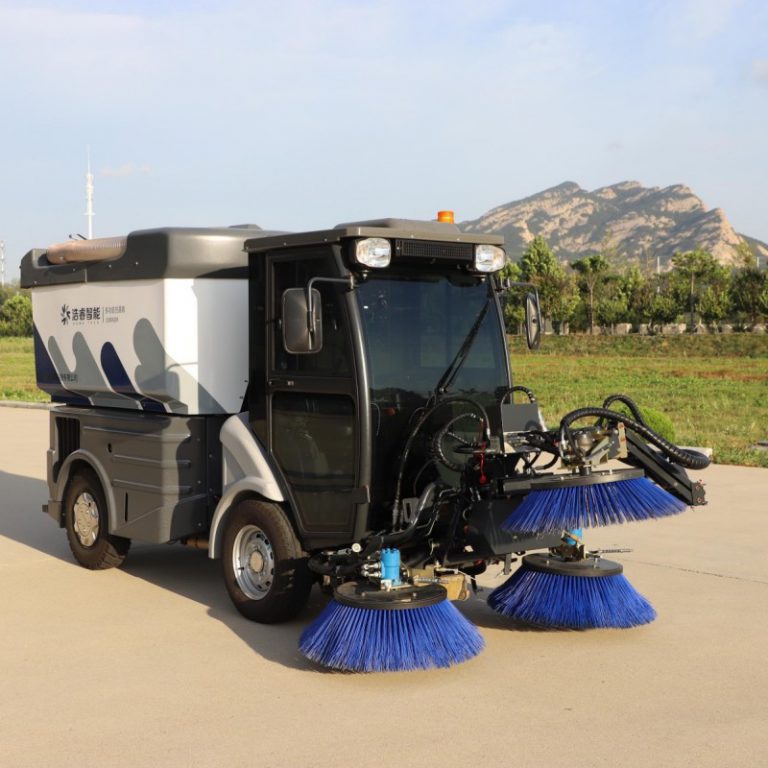

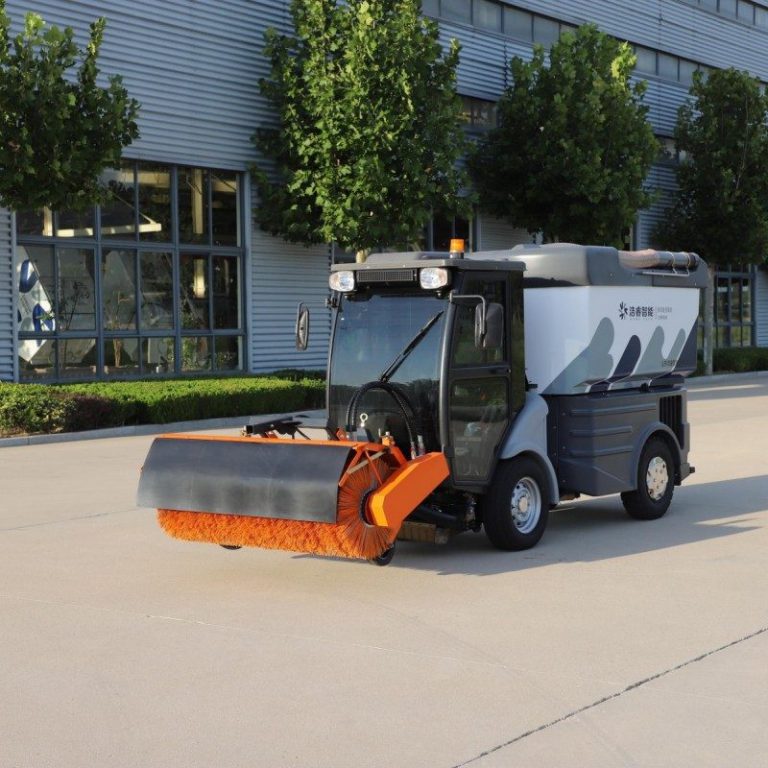

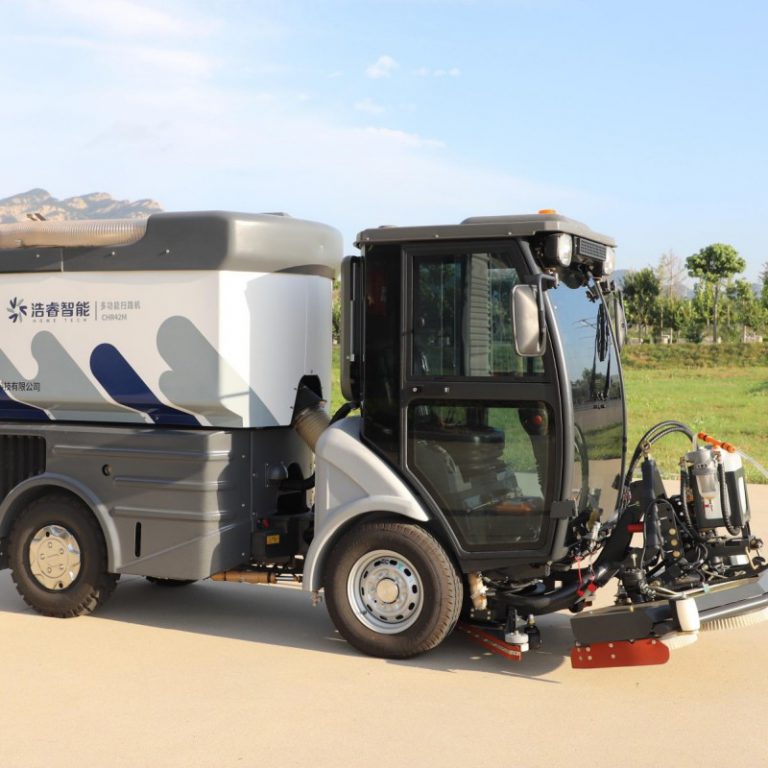

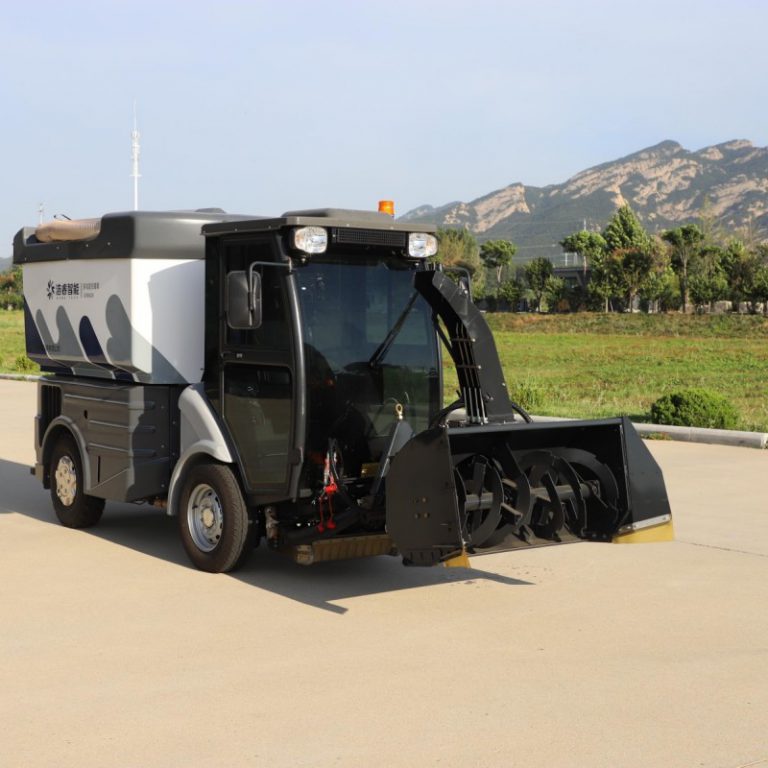

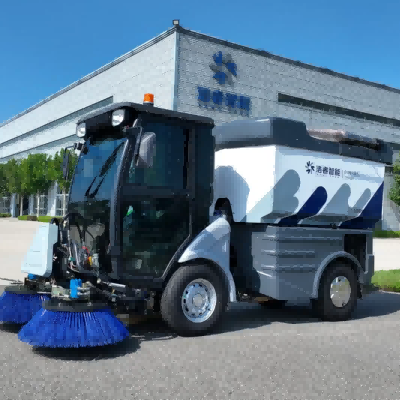

CHR42M road sweeper is a multi-functional road sweeper with a special chassis structure that can replace various functional accessories. This road sweeper adopts the advanced design concept of vehicle platform and modular functional accessories, which can quickly switch between functions without tools. The whole machine is powered by an original imported Yangma diesel engine, and all operations are jointly completed by the mechanical structure, electrical system and hydraulic system.
CHR42M road sweeper is a multi-functional road sweeper with a special chassis structure that can replace various functional accessories. This road sweeper adopts the advanced design concept of vehicle platform and modular functional accessories, which can quickly switch between functions without tools. The whole machine is powered by an original imported Yangma diesel engine, and all operations are jointly completed by the mechanical structure, electrical system and hydraulic system.
Features:
1) It is designed with a unique two-way hinge structure in the middle, so that the front and rear frames can swing in the two directions of twisting and steering, and the steering operation is flexible and the turning radius is small.
2) The cab adopts a panoramic glass structure, and the operation line of sight is wide.
3) Comfortable driving environment，equipped with radio, cruise control function, electronic stepless speed regulation function, the driver can drive the vehicle more easily and conveniently.
4)Excellent electrical control system:
☆ The whole vehicle is digitally controlled by a controller, which is characterized by good seismic resistance and high protection level.
☆ All cleaning actions can be realized by pressing one key.
☆ The brush speed can be adjusted steplessly according to the operation requirements.
☆ It is equipped with a 7-inch LCD monitor, which can observe the working state of the vehicle at any time and provide a reversing image.
5) Stable traveling system:
☆ Four wheel drive and two wheel front drive can be switched to meet the requirements of driving and climbing;

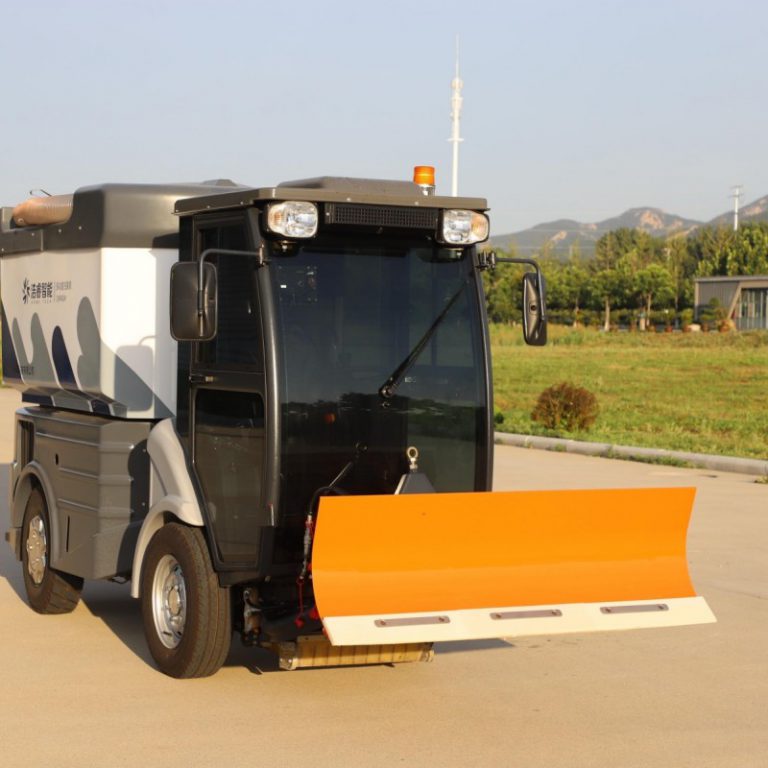

☆ The unique anti skidding function can realize the self extrication of wheels from skidding in winter snow removal operation;
6) High level discharge:
☆ The container is made of high-quality stainless steel, which is not only corrosion resistant, but also of high strength.
☆ High self dumping reduces the labor intensity of the operator, making it very convenient to dump garbage and clean and maintain the whole machine.
7) Self cleaning function
☆ It is equipped with a washing water pump, which can provide high-pressure clean water.

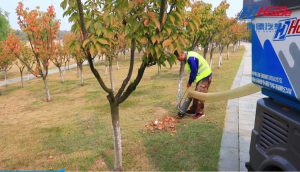

8) Hand held suction hose: Equipped with extension hand-held retractable straw, which can be used for dust collection in green belts and other places.
9) Emergency system
☆ Portable fire extinguisher is equipped in the cab to deal with emergencies.
☆ Emergency hand oil pump is equipped to lift the trash can for troubleshooting when the hydraulic system fails.
☆ Engine emergency stop switch is equipped in the cab.
☆ Mechanical vehicle power emergency stop switch is equipped.
| Item | Parameter |
| Dimension（L*W*H） | 4330*1220*2170mm |
| Wheelbase | 1930mm |
| Min. turning radius | 6200 mm |
| G.V.W | 3500kg |
| Kerb mass | 2160kg |
| water tank volume | 300(150+150)L |
| Garbage bin volume L | 1500L |
| Sweeping width | 2150mm |
| Max speed | 30km/h |
| Working speed km/h | 1-10 km/h |
| Max. suction density | 2.0 g/cm3 |
| Sweeping capability m2/h | 21500 |
| Max gradeability | ≥20% |
| Engine | YANMAR In line four cylinder, four stroke, water-cooled, direct injection, diesel engine |
| Engine model | 4TNV88 |
| Engine power | 32kw/2600rpm |
| Dump height | 1300mm |
| Diameter of sweeping brush mm | 650mm |
| Suction hose diameter mm | 125mm |
