CHD5180GQXDFE6 Road Cleaning Truck

Share to

Short description

The road cleaning truck series are developed by Haide Vehicle with reliable performance and multiple applications in mind. It has a variety of functions such as pavement flush, road washing , road rinse, garden spray, and emergency fire protection.

Chat Now

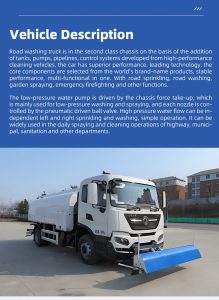

Product Overview

It can be mounted on various chassis as available in the market. And The Road washing machine is designed for simple operation and is integrated with Stainless Steel SS304 Water Tanks, low -pressure water pumps, pipelines, and control systems. A separate High -pressure water system is installed for road washing.

The vehicle can be widely used in daily spraying and cleaning operations of highways, municipalities, sanitation and other departments.

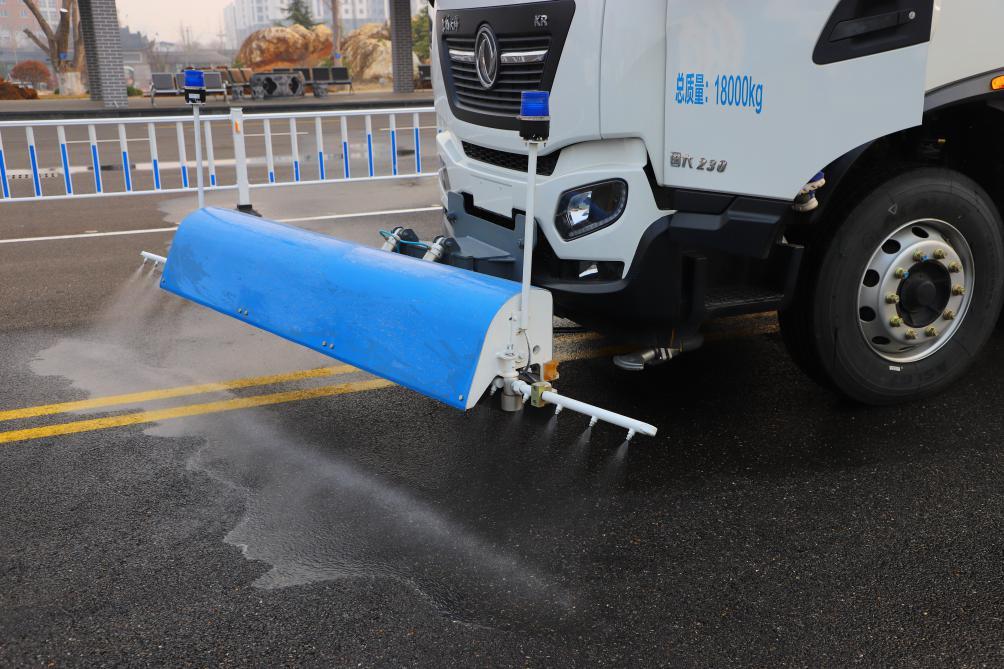

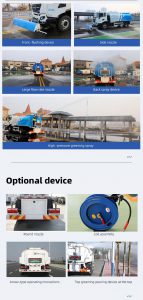

Front -flushing device

Large flow rate nozzle

Back spray device

High -pressure greening spray gun

Lighting assignment sign

Round nozzle

Roll tube assembly

Arrow -style operation instructions

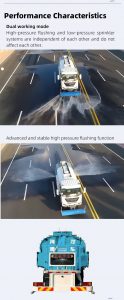

Performance Characteristics

Standard stainless-steel tank, with a low-water alarm system;

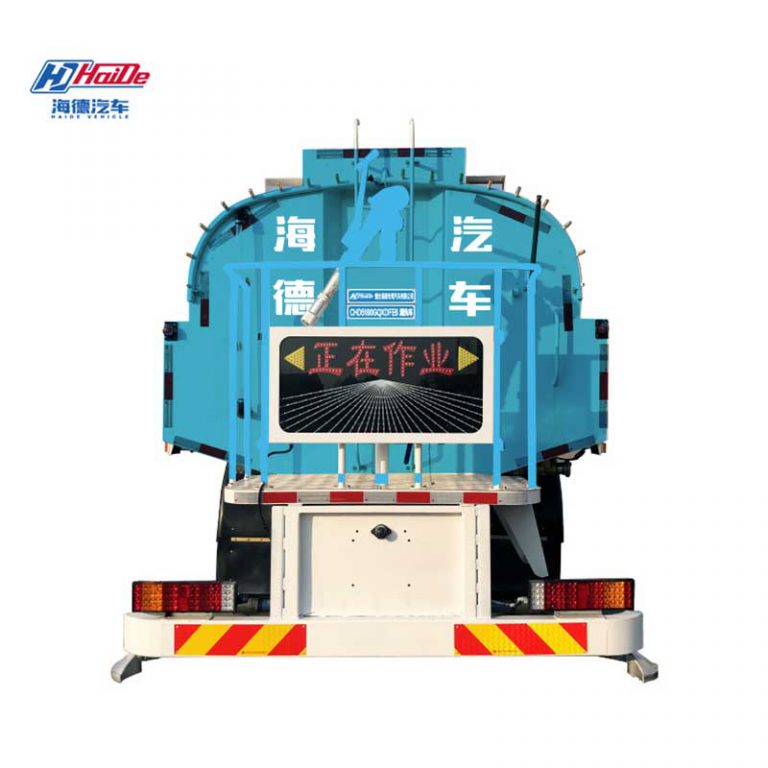

The rear of the vehicle is equipped with light emitting operation signs;
Two sets of independent high pressure, & low-pressure water system;
High -pressure water system：
1. High-pressure water pump overspeed automatic alarm protection
2. Pneumatic control system for high-pressure water valve operation in the cab
3. The front is equipped with a high-pressure washing device that swings left and right with pneumatic control for safety and obstacle avoidance, and the cleaning width is increased to 3.5 meters;
4. There is a spray device behind the vehicle to adjust the air temperature
5. The front of the vehicle is equipped with left and right high-pressure nozzles for high-pressure side flushing
Low pressure water system：
1. All operations are performed in the cab, and various tasks can be completed with one click
2. Equipped with multi-curved columnar side nozzles for side flushing operation, the flushing angle can be adjusted arbitrarily, the flushing width is greater than 24M. There are duck-foot nozzles and cylindrical nozzles at the front and rear, and the sprinkling width is greater than 16M.
3. Rear working platform, using long-range adjustable (cylindrical or mist) water gun
4. It has a self-priming function and uses the water pump on the vehicle to suck water into the tank.
5. There is a self-circulation loop in the water system, which can be used to melt snow melting agent in winter;
6. The rear of the vehicle is equipped with a green belt water pipe pressure fire-fighting interface to facilitate connection with remote water pipes;

Technical Parameters

Items	Data
Chassis Model	EQ1180DACEV
L×W×H	10400×2490×3970 mm
Wheelbase	5300 mm
Mileage range (equal-speed method)	380 km
Energy storage device model	L228H01
Manufacturers of energy storage devices	CATL
Total power storage	281.917 kWh
Total Nominal Voltage	618.2V
Driving motor model	TZ342XSSFY02
Manufacturer (Gearbox/Motor)	Shaanxi Faster gear Co., LTD
Rated power / speed / torque	110kW / 2000r/m / 500N.m
GVW	18000 kg
Curb weight	10800 kg
Rated contained mass	7005 kg
Declared volume	9.1 m3
Range (wind-still)	Horizontal: 100m; Vertical: 35-40m
Spray water pressure	1.5 – 3.5 MPa
Spray water flow rate	8 – 10 m3/h
Fog grain size	30 – 200 μ
Spray pitch angle	−10∘−45∘
Horizontal rotation angle	0−320∘
Operating efficiency	2 – 2.4 million m2/h
Sprinkler flow	500 – 800 L/min
Sprinkler width	≥16 m
Medium column flush width	≥24 m
Greening gun range	≥38 m
