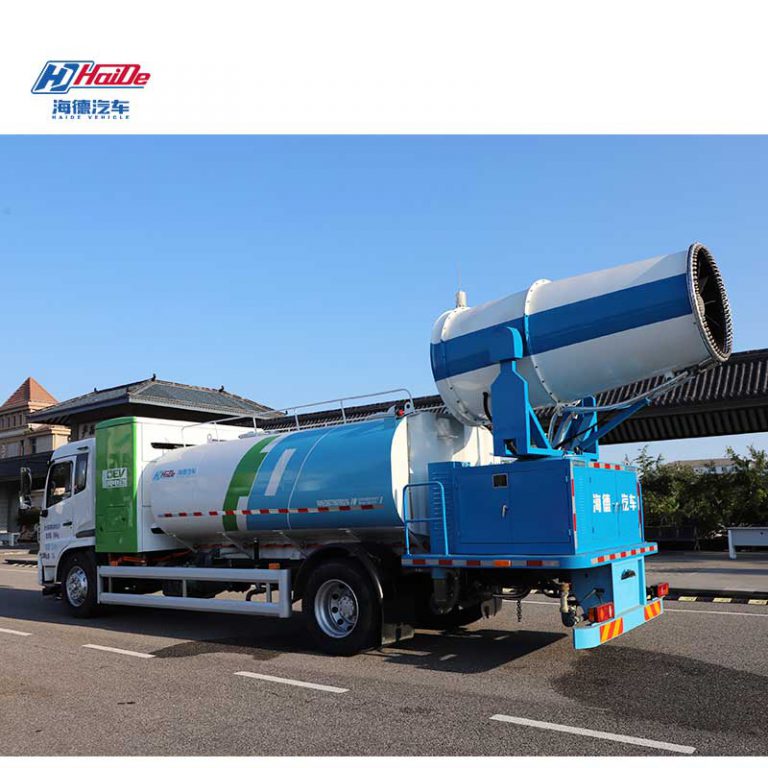

The multi-functional dust suppression truck is a high-tech dust suppressor equipment that can purify the air and reduce the concentration of PM2.5, also known as the “fog cannon”. It can reduce dust and decontamination by spraying water mist, and has strong penetration of dust in the air, which can effectively control PM2.5, nitrogen dioxide and ozone pollution and improve the urban air environment.
The multi-functional dust suppression truck is a high-tech dust suppressor equipment that can purify the air and reduce the concentration of PM2.5, also known as the “fog cannon”. It can reduce dust and decontamination by spraying water mist, and has strong penetration of dust in the air, which can effectively control PM2.5, nitrogen dioxide and ozone pollution and improve the urban air environment.
The truck is stable in quality, set multi-function and one, widely used in urban air purification, coal yard, port pile, construction site and other dust, airports, highways, stations, docks and other public places and landfill, with highways, sports venues moisturizing, cooling, road sprinkling, road flushing, garden spraying, spraying disinfection, emergency fire and other functions.
High-pressure spray fog and low-pressure waterway systems are independent of each other.
Advanced level of technology: the tank is equipped with multi-channel anti-wave partition to reduce the impact on the tank, the water tank is equipped with a low water level alarm system, and the fog cannon adopts a double-arm noise reduction process to minimize the noise of vehicle operation.
Manufacturing material quality: The tank adopts 304 stainless steel material, corrosion resistance, stable performance.
Convenience of operation and maintenance: the control adopts the form of wireless remote control, easy to operate, the core elements of the fog cannon are located in the maintenance cabin under the fog cannon for easy maintenance.
Overall advanced and stable: sprinkling independent motor drive, low-speed sprinkling operation rinsing distance, stable flow.
Low-pressure sprinkler systems：
Adopting one-click operating system, it has the function of front rinsing and rear sprinkling, and the width is adjustable;
Equipped with left and right center column side flushing device, the nozzle can be adjusted at any angle 360°;
The tank is standardized with 304 stainless steel with multiple anti-wave partitions to reduce the impact on the tank, and the water tank is equipped with a low water level alarm system.
The vehicle is equipped with a self-suction water pump with self-suction function and a self-circulating loop in the water system, which can be used to melt snowmelt in winter;
The whole water circuit adopts pneumatic system, which is safe, reliable, easy and flexible to operate;
Sprinkling independent motor drive, low-speed sprinkling operation rinsing distance, stable flow.
High-pressure spray systems：
Intelligent control system, with manual (remote control) and remote control two kinds of operation mode, simple and intelligent operation;
The spraying system adopts double spray rings and adjustable nozzles for fog granularity, with strong wind power, high (far) range and good penetration;
Vertical multistage centrifugal water pumps have high head, long life and corrosion resistance;
The vehicle’s high-voltage lines are equipped with a safety short-circuit protector to prevent safety accidents when the lines are abraded, submerged in water or otherwise short-circuited;
Multi-protection rear work platform is equipped with safety frame guards, with high spray green water gun, with auxiliary fire-fighting function, can be pressed into a column or fog;
Rear stop button, safety alarm device, safety short-circuit protection system Multiple safety protection system ensures the safety of vehicle operation.

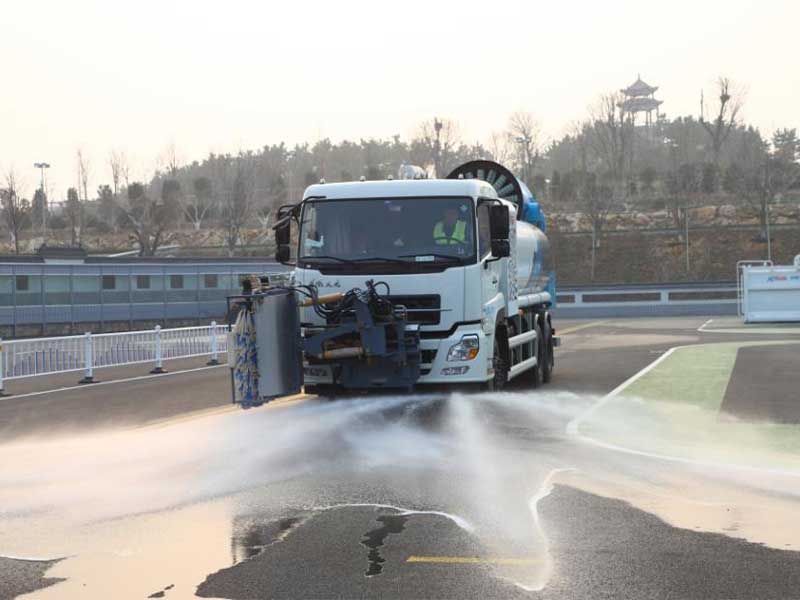

Figure 1 Front Flushing (based on actual vehicle)

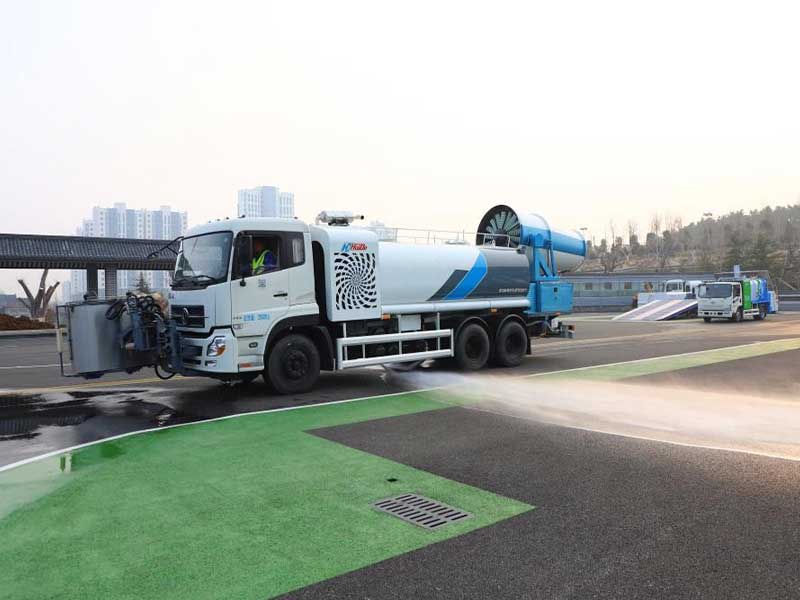

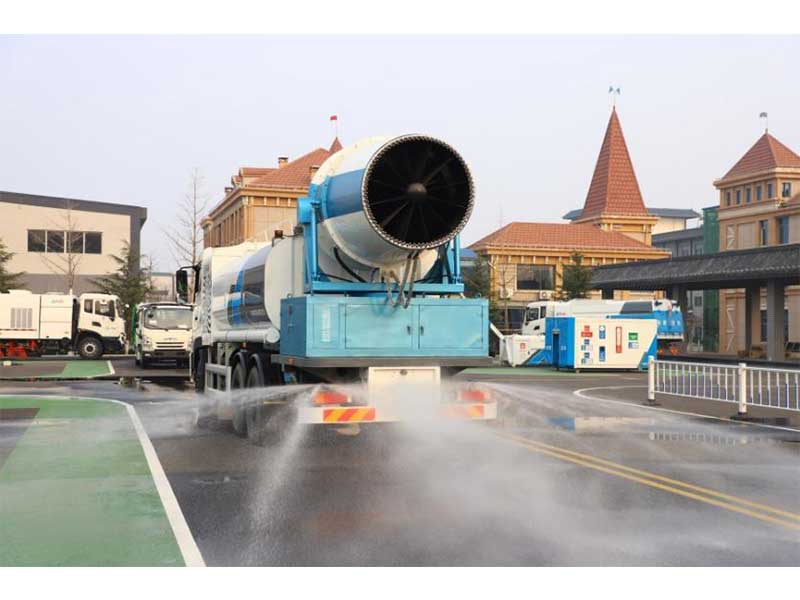

Figure 2 Side Flush Device (based on actual vehicle)
Figure 3 Rear Sprinkler

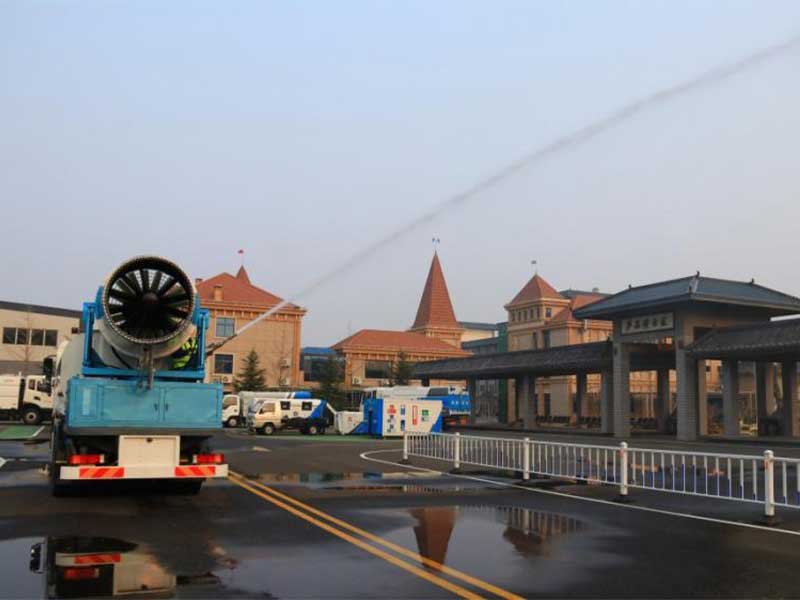

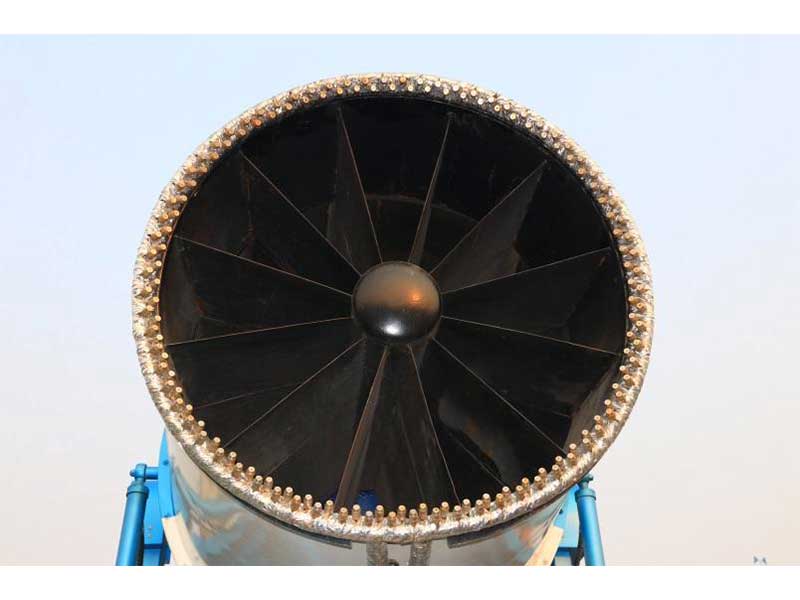

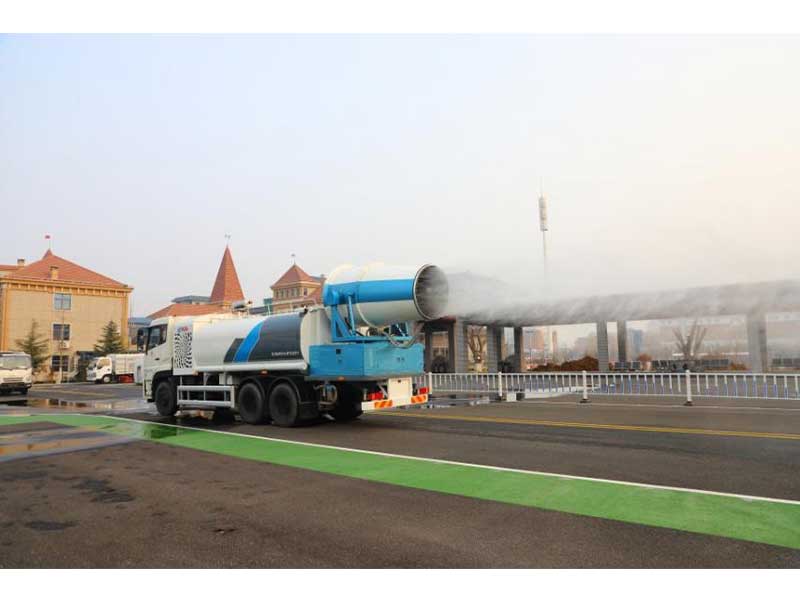

Figure 4 Double spray ring fog gun
Figure 5 High Spray Greening Water Guns
Fig. 6 Nozzle with adjustable fog grain size

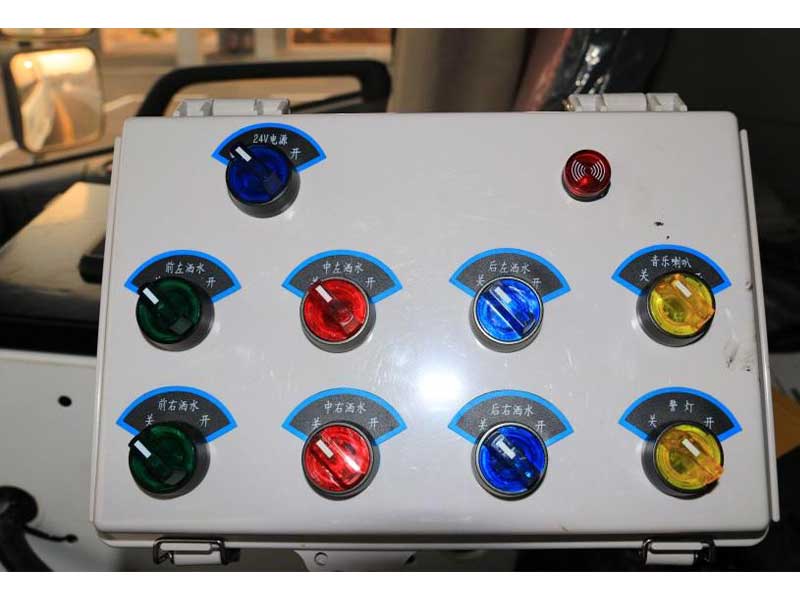

Figure 8 Waterway Pneumatic System

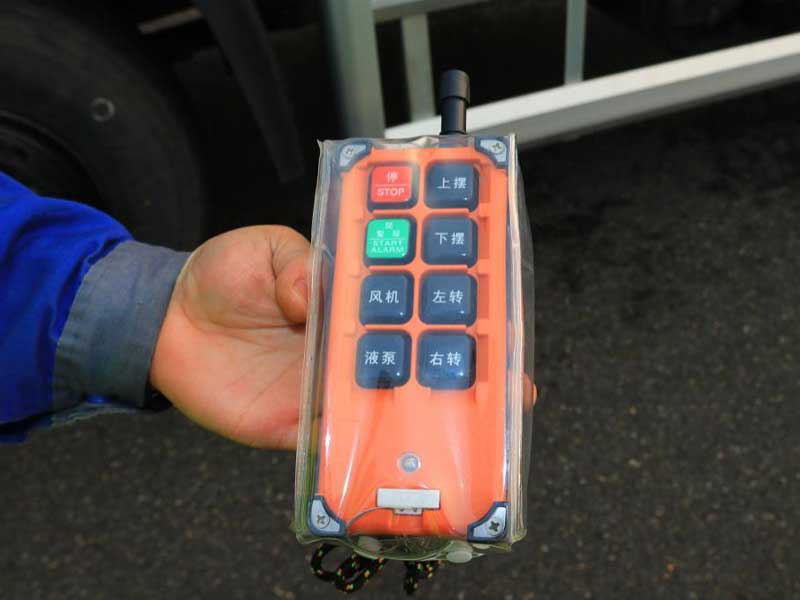

Figure 9 Remote control system
| Item | Parameter |
| Chassis model | EQ1180DACEV |
| L | 10400mm |
| W | 2490mm |
| H | 3970mm |
| Front/Rear axle | 5300mm |
| Mileage range (equal-speed method) | 380km |
| Energy storage device model | L228H01 |
| Manufacturers of energy storage devices | Ningde Times New Energy Technology Co. |
| Total power storage | 281.917（kWh） |
| Total Nominal Voltage | 618.2V |
| Driving motor model | TZ342XSSFY02 |
| Manufacturer | Shaanxi Fast Gear Co., Ltd. |
| Rated power/speed/torque | 110/2000/500 kW/r/min/N.m |
| GVW. | 18000kg |
| Overall mass | 10800kg |
| Rated mass | 7005kg |
| Range (wind-still) | Horizontal 100m; Vertical: 35-40m |
| Spray water pressure | 1.5–3.5Mpa |
| Spray water flow rate | 8-10m³/h |
| Fog grain size | 30–200μ |
| Spray pitch angle | -10°－45° |
| Horizontal rotation angle | 0-320° |
| Operating efficiency | 2-2.4 million 2/h |
| Sprinkler flow | 500-800L/min |
| Sprinkler width | ≥16m |
| Medium column flush width | ≥24m |
| Greening gun range | ≥38m |
