CHD5180TXCZQE6Road Marking Line Removal Truck

Features :

1.Ultra-high-pressure pump systems feature a compact design, small footprint, and high efficiency, and are safe and reliable to use. The high-pressure pump, which serves as the main working unit, is a plunger pump. The crankshaft and connecting rods utilize bearing bushings, ensuring more reliable power transmission and lower temperature rise in the power end. By selecting a diesel engine with appropriate power and speed, along with relief valves, safety valves, and inlet/outlet piping systems, the high-pressure pump unit is capable of delivering high-pressure water that meets operational requirements.

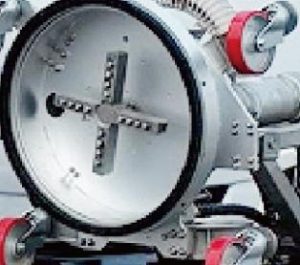

2.Hydraulically driven cleaning system: This vehicle is equipped with a hydraulically driven cleaning system, featuring a spray bar rotation speed of up to 1,000 rpm and a cleaning pressure of up to 250 MPa.

3.Sapphire nozzles: This vehicle is equipped with high-quality sapphire nozzles designed to withstand ultra-high pressure, ensuring a long service life.

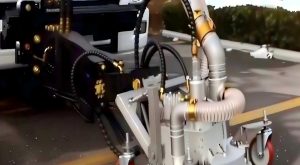

4.Omnidirectional boom: This vehicle is equipped with an omnidirectional boom that not only allows for up, down, left, and right movement but also enables lateral sliding, thereby maximizing the operational range of the cleaning equipment.

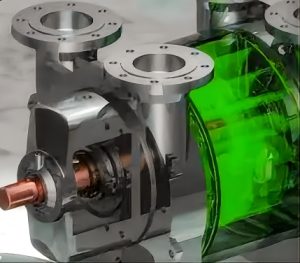

5.Exceptional negative pressure: This vehicle is equipped with a Roots vacuum pump capable of withstanding negative pressures as low as -0.4 bar.

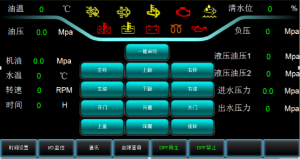

6.Intelligent control system: This vehicle is equipped with an intelligent control system that features a one-touch start function for cleaning operations and a full-tank alarm for the wastewater tank.

7.Stainless steel tank: This vehicle is equipped with a 304 stainless steel tank, which offers high corrosion resistance and a long service life.
