The vacuum cleaner is a new generation of operating vehicle developed by Yantai Haide Special Vehicle Co., Ltd. according to the actual situation of China and in combination with the company’s years of research and development experience in road sweepers and vacuum cleaners. This vehicle has changed the traditional way of sweeping with a sweeping plate by conventional road sweepers, and all adopt negative pressure suction without back-blowing structure to achieve full dust filtration and no secondary dust. The vehicle is suitable for cleaning of urban roads, viaducts, squares, airports, docks, factories, coal mines and other places.
The vacuum cleaner is a new generation of operating vehicle developed by Yantai Haide Special Vehicle Co., Ltd. according to the actual situation of China and in combination with the company’s years of research and development experience in road sweepers and vacuum cleaners. This vehicle has changed the traditional way of sweeping with a sweeping plate by conventional road sweepers, and all adopt negative pressure suction without back-blowing structure to achieve full dust filtration and no secondary dust. The vehicle is suitable for cleaning of urban roads, viaducts, squares, airports, docks, factories, coal mines and other places.
The operation principle of the vehicle is: the garbage on the road is sucked into the dustbin through the suction pipe through the cleaning brush plate or the side-swing suction cup, equipped with the central suction cup. After entering the dustbin, the air flow slows down due to the instant expansion of the space volume, which separates the garbage from the air flow, and the garbage settles into the dustbin. The air flow is filtered through the stainless steel filter screen to filter the large and light garbage such as leaves and paper scraps. The filtered air flows into the dedusting box at the front of the box. The dedusting box is equipped with a large-area dedusting filter cartridge. The filtered air flows into the suction fan for completion.
1.Full air volume filtration pneumatic conveying system: completely realize waterless operation.
2.Spraying unloading dust reduction system: realizing spraying dust reduction when dumping garbage.

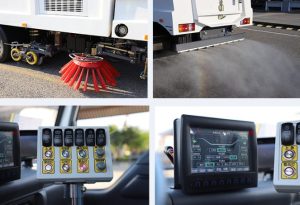

3.Electrically adjustable variable-speed brush unit: The variable speed of the brush unit can be realized under any working condition to improve the cleaning efficiency.
4.Dual auxiliary engine air filter device: double element air filter + oil bath air filter is used to ensure the quality of the engine intake and maximize the service life of the engine.
5.Multi auxiliary engine machine protection: with low oil level, low temperature, low water level alarm system, always check the status of the sub-engine.
6.Open high speed brush suction port: easy maintenance, high suction efficiency, high speed brush to achieve efficient cleaning of garbage without missing.
| Item | Parameter |
| Chassis model | DFH1180EX8 |
| Fuel | Diesel |
| Manufacturer | DONGFENG |
| Chassis Wheel base | 4500 mm |
| Engine model | B6.2NS6B230 B6.2NS6B210 |
| Power /hp | 169 kW/229 hp 154 kW/209 hp |
| Auxiliary engine model | QSB5.9-C160 |
| Rated power（kw/rpm） | 119/2200kw/rpm |
| Displacement | 6200 ml |
| Frame width | 850 mm |
| Length | 7995/8025/8195/8225mm |
| Width | 2500 mm |
| Height | 3030 mm |
| Superstructure length | 5955 mm |
| Superstructure width | 2460 mm |
| Superstructure height | 2230 mm |
| Curb weight | 12570 kg |
| Superstructure weight | 6970 kg |
| Rated load | 5300/5235 kg |
| GVW | 18000 kg |
| Garbage container volume | 9 m³ |
| Clean water tank volume | 60 L |
| Maximum cleaning width | 3300 mm |
| Maximum suction width | 3500 mm |
| Maximum cleaning capacity | 66000 ㎡/h |
| Maximum suction diameter | 120 mm |
| Filter quantity | 14pieces |
