The whole machine adopts maintenance-free lead-acid batteries as the power source, which is safe and reliable.
The front wheel drive mode can achieve 90in situ steering, which is flexible and convenilent.
The control system adopts CAN bus control system, with simple circuit and precise control.
A negative pressure sensor is installed inside the sewage tank to constantly monitor thenegative pressure value inside thewater tank.
During operation, the systemautomatically adjusts the height of the brushto ensure a constant pressure on the ground.
The amount of water sprayed is not affectedby the water level in the water tank or the operating speed, maximizing thecleaning effect and operating time.
One charge can operate continuously for 7-8 hours.
One click operation design, simple and safe operation.

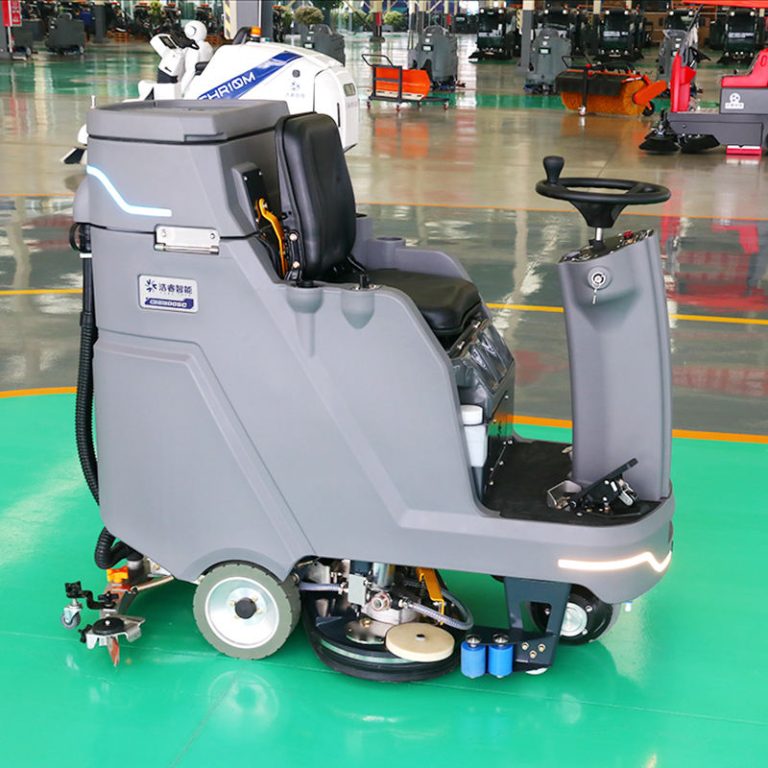

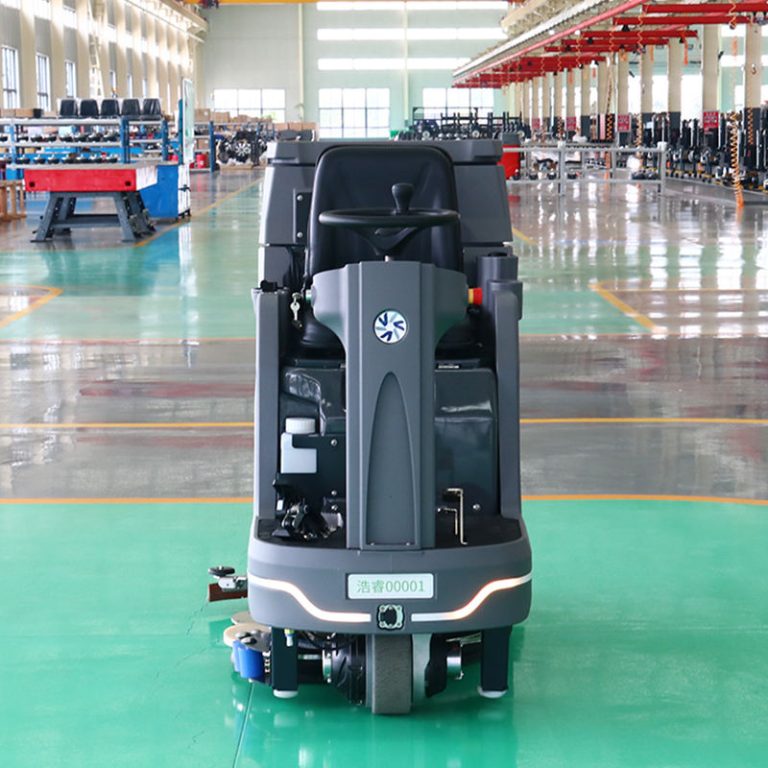

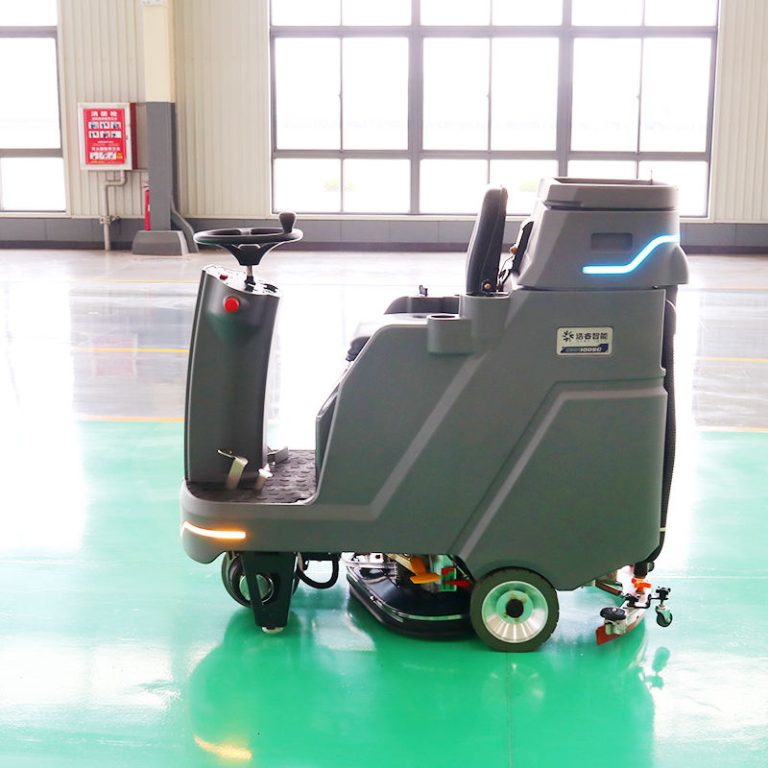

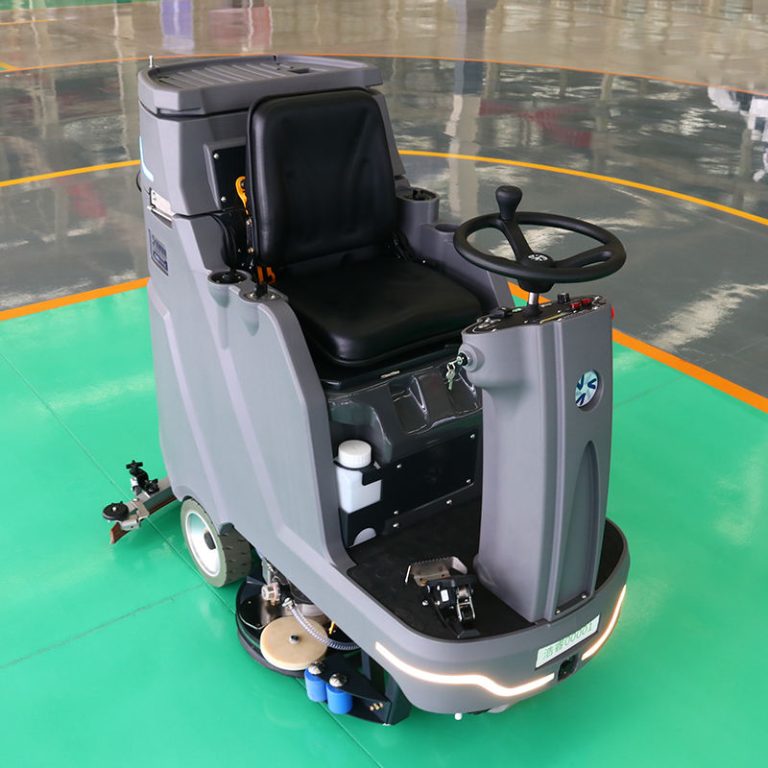

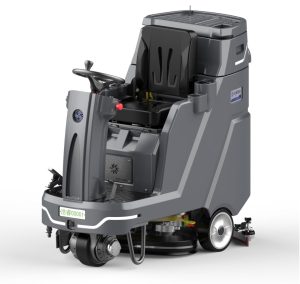

CHR100SC floor washing machine is a high-efficiency floor washing machine with the functions of washing, drying and scraping. It is suitable for the cleaning of shopping malls, warehouses, hospitals, hotels,underground garages, factories,airports, subway stations and other places, and can meet the work needs of customers in various work scenes.
| Item | parameters |
| Model | CHR100SC |
| Dimension(L*WH) | 1500×760×1330(mm) |
| Maximum total mass | 535Kg |
| Suction disc width | 890(mm） |
| Brush width | 330*2mm |
| Driving speed | 0~6Km/h |
| Cleaning width | 660mm |
| Squeegee width | 890mm |
| Clean/Sewage water tank volume | 110/100L |
| Main brush rotating speed | 180r/min |
| Brush motor | 550*2W |
| Fan | 550W |
| Driving motor | 650W |
| Gradeability | 10% |
| Cleaning time | 5~6h |
| Cleaning efficiency | 3900㎡/h |
| Noise | <68dB |
| Battery volume | 24V/200Ah |
| Voltage | 24V |
| Working temperature | 1~45°C |
| Charging time | 6-8h |
