The whole machine adopts maintenance-free lead-acid batteries as the power source, which is safe and reliable.
The front wheel drive mode can achieve 90in situ steering, which is flexible and convenilent.
The control system adopts CAN bus control system, with simple circuit and precise control.
A negative pressure sensor is installed inside the sewage tank to constantly monitor thenegative pressure value inside thewater tank.
During operation, the systemautomatically adjusts the height of the brushto ensure a constant pressure on the ground.
The amount of water sprayed is not affectedby the water level in the water tank or the operating speed, maximizing thecleaning effect and operating time.
One charge can operate continuously for 7-8 hours.
Install a 900mm wide disc brush, withan hourly cleaning area of up to 5400m.

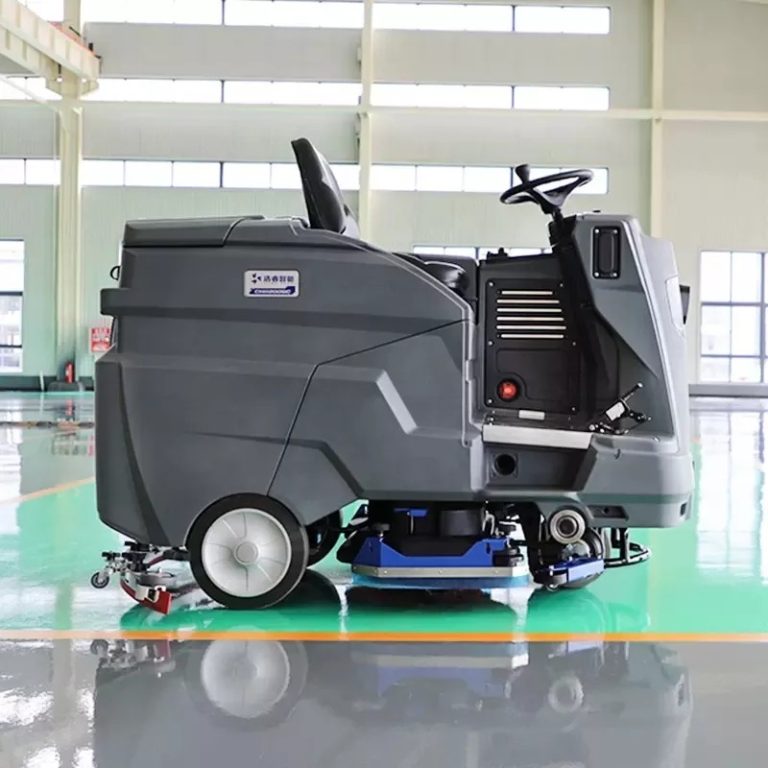

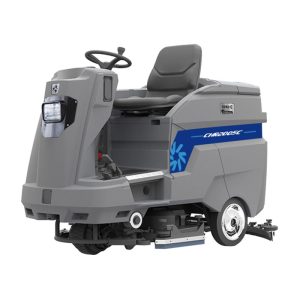

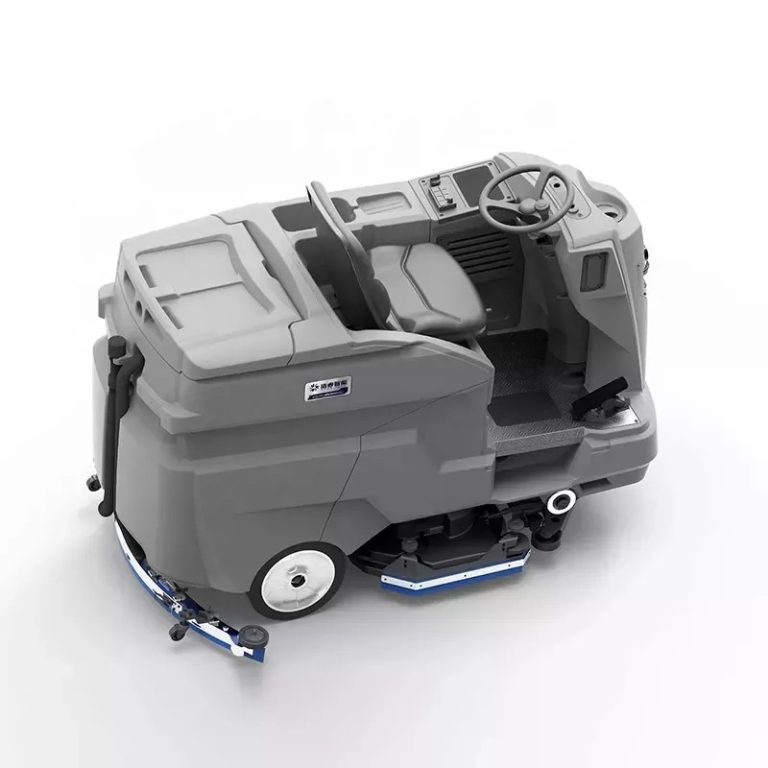

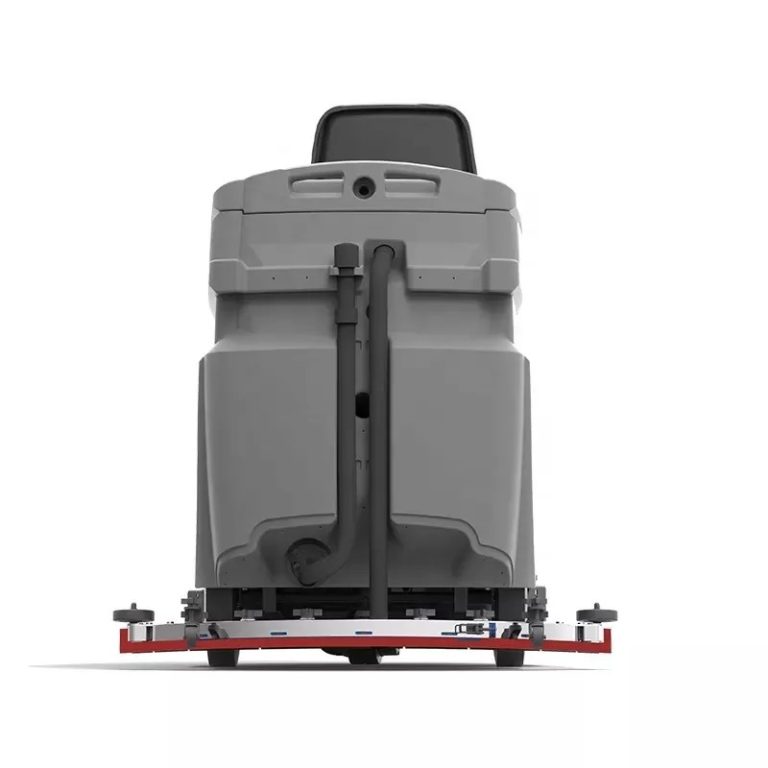

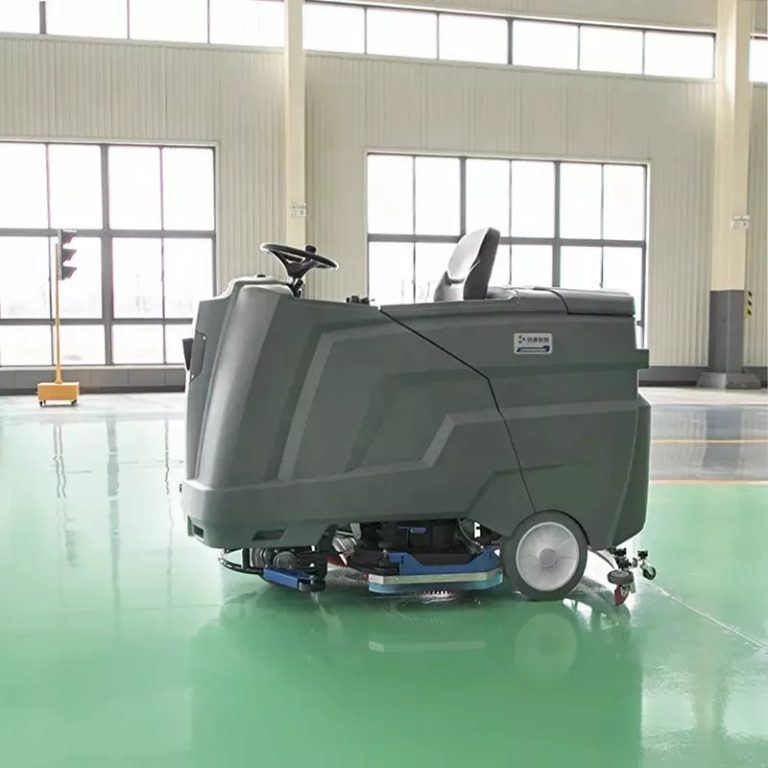

CHR200SCCHR200SC is suitable for cleaning in variousplaces such as shopping malls, warehouseshospitals, hotels, undergroundgarages, factories, airports, subway stations, etc. lt has multiple working modes such as economy, normal, enhancement,polishing, and cleaning.
| Item | parameters |
| Model | CHR200SC |
| Dimension(L*WH) | 1900x940x1440mm |
| Weight (including accessories) | 480Kg |
| Working width of main brush | 900mm |
| Suction working width | 1060/1200mm |
| Clean water tank/sewage tank | 240/240L |
| Main brush speed | 160R/min |
| Rated power | 2300W |
| Traction motor | 650W |
| Power Supply | 3V |
| Suction fan | 760W |
| Brush motor | 380W |
| Noise(maximum)dB | <66dBA |
| Electric quantity | 200Ah |
| Cleaning area | 5400m/h |
| Heavily cleaned workingarea | 3800m2/h |
| Ground contact pressure ofmain brush in economic mode | 24g/cm2 |
| Enhanced mode main brush touchdown pressure | 34g/cm2 |
| Working hours | 5-6h |
