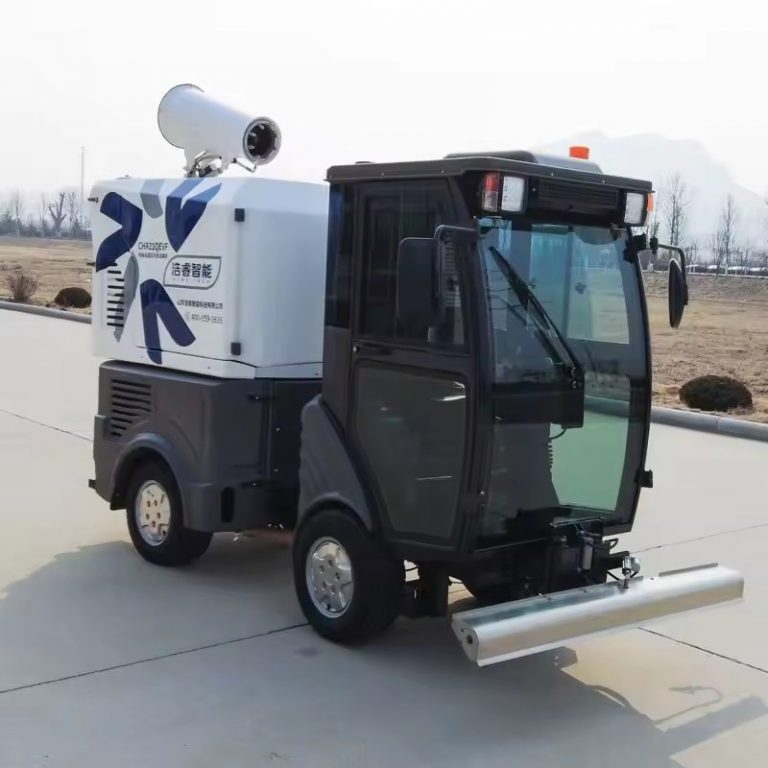

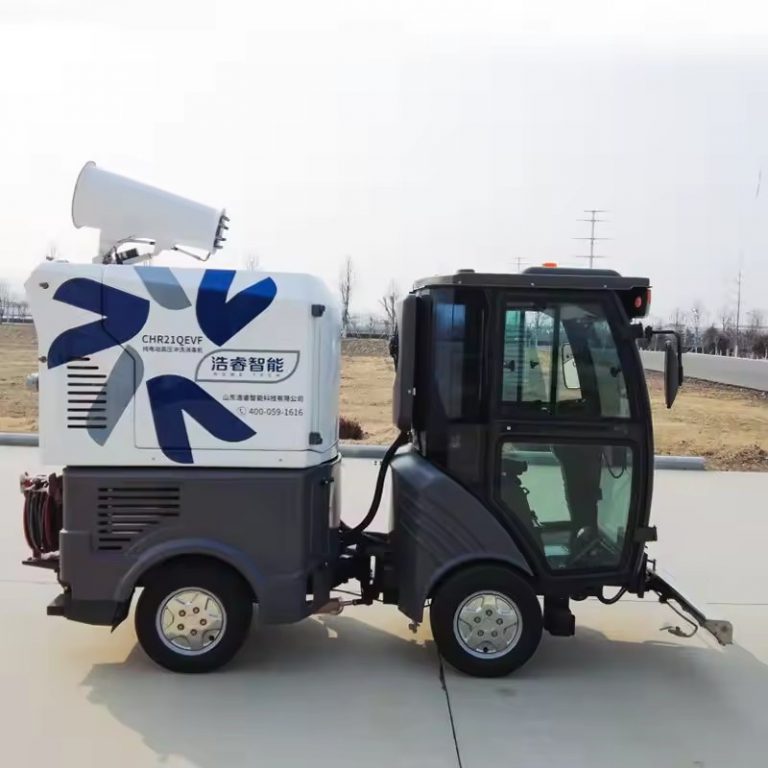

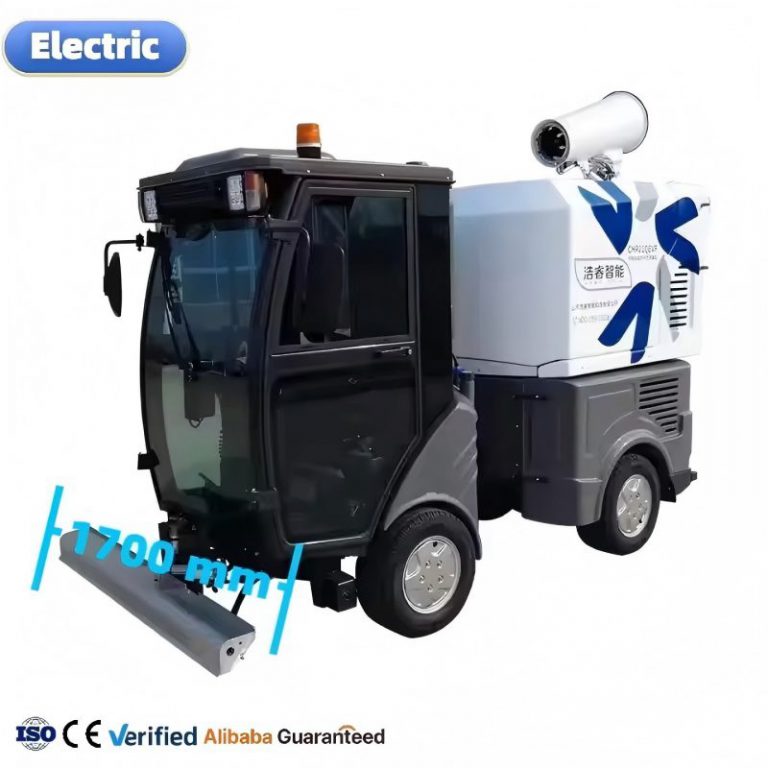

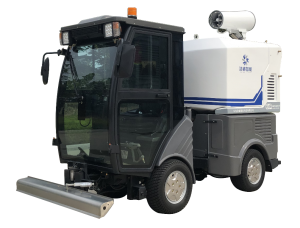

CHR21QEVF Full Electric High-pressure Cleaner

1. Articulated steering

Small turning radius. The minimum turning radius is only 2.6m, which has good passability and can easily pass through the isolation pile,The width of the front spray rack is 1540mm, with a minimum passing width of 1350mm (with the front spray rack tilted). It can easily turn around on narrow roads and achieve 360 ° circumferential flushing and disinfection;

2. Panoramic glass cab

The front bumper and both sides of the rear of the driver’s cab are equipped with panoramic glass structures, providing a wide view of the work without any blind spots, which is more conducive to ensuring work quality; The glass in the driver’s cab is covered with a solar film, which can effectively insulate from heat in hot summer and prevent the glass from bursting when hit by hard objects, ensuring the safety of the driver.

3. Driving comfort

The driver’s cab is equipped with functions such as air conditioning and phone charging. It can also be equipped with more powerful multimedia devices, such as wireless radio, MP3 playback, etc; Equipped with domestically renowned brand mechanical suspension seats as standard, the shock absorption comfort can be adjusted based on the driver’s height and weight, effectively solving the problem of poor riding comfort of rigid suspension small road sweepers. The seats can also be equipped with German GRAMMER seats for better shock absorption performance.

4. Efficient control system

The control system adopts a pure electric vehicle level vehicle control unit (VECU), which has strong CAN bus information processing capabilities. It has the characteristics of good seismic resistance, high protection level, resistance to large temperature differences, voltage fluctuations, and the ability to achieve complex control calculations. It also supports the installation of vehicle networking terminals to achieve remote monitoring and diagnosis of vehicle data.

5. Zero emissions

The entire power system adopts a lithium iron phosphate battery pack, which is safe and reliable. BMS management control ensures the stability and safety of vehicle operation and charging. The walking system has an electric energy feedback function that can charge the battery in reverse when the vehicle is downhill and decelerating. Combined with a unique vehicle networking platform, it can effectively monitor the safety of the vehicle’s electricity consumption and promptly detect faults.

6. Reliable Performance

The main components, such as the driving motor and controller of the walking water pump, are all domestically produced, with excellent performance and reliable operation.

7. High anti-corrosion performance

The water tank body is made of glass, which has the advantages of high strength and strong corrosion resistance.

8. Low operating noise

The spraying operation has low noise, and the maximum operating noise is only 75dBA.

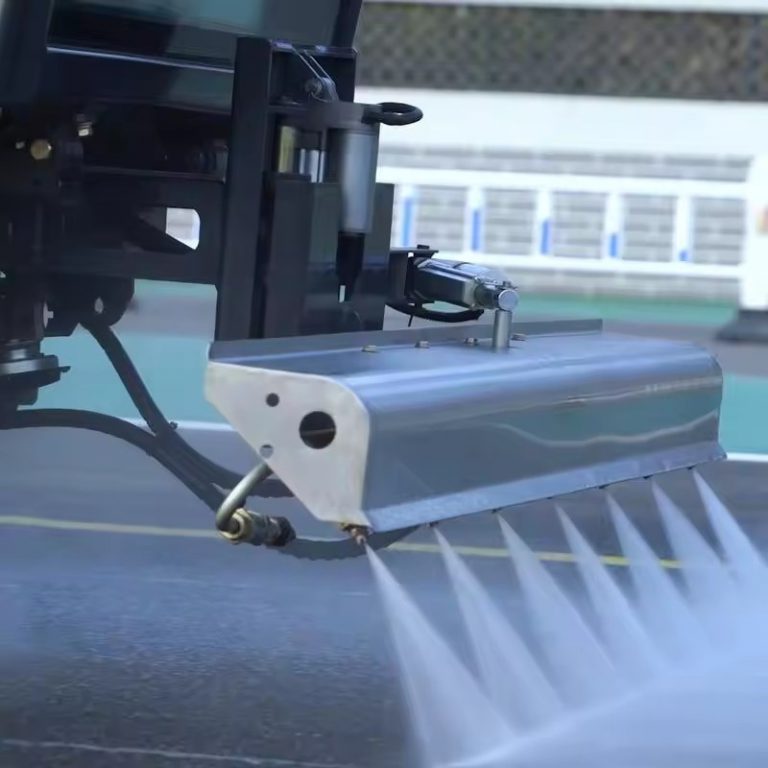

9.Front flushing operation

When operating the high-pressure front flushing system, the driver can adjust the height and swing angle of the front spray rack at any time according to the road conditions to ensure the operation effect.

10. Side flushing operation

The side flushing operation can be coordinated with a road sweeper (road sweeper) to use high-pressure water from the side to flush the garbage on the sidewalk onto the road, or to flush out the garbage under the vehicle, which is then cleaned by the road sweeper (road sweeper). Collaborative work can significantly improve the efficiency of municipal sanitation operations.

11. Rearspray operation

High pressure spray has a wide coverage, which can be used for close distance and large area coverage spray dust suppression operations within 5 meters on both sides.

• Disinfection and sterilization function

By mixing disinfectants in proportion, efficient and flexible disinfection and sterilization operations can be achieved, suitable for epidemic areas, hospitals, and other scenarios.

• Pesticide spraying function

By adding pesticides, insecticides, etc., large-scale and flexible drug spraying operations can be achieved in parks, farms, and other places.

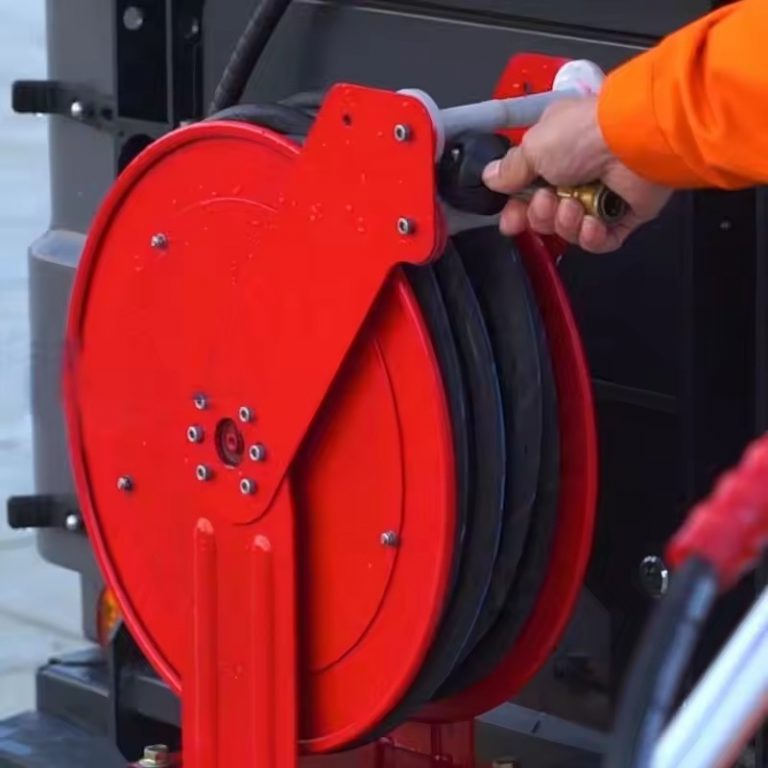

12. Hand held high-pressure flushing operation

The high-pressure handheld spray gun can achieve functions such as spraying (medication, disinfection), cleaning small advertisements, and brushing cars.

13.Optional configuration

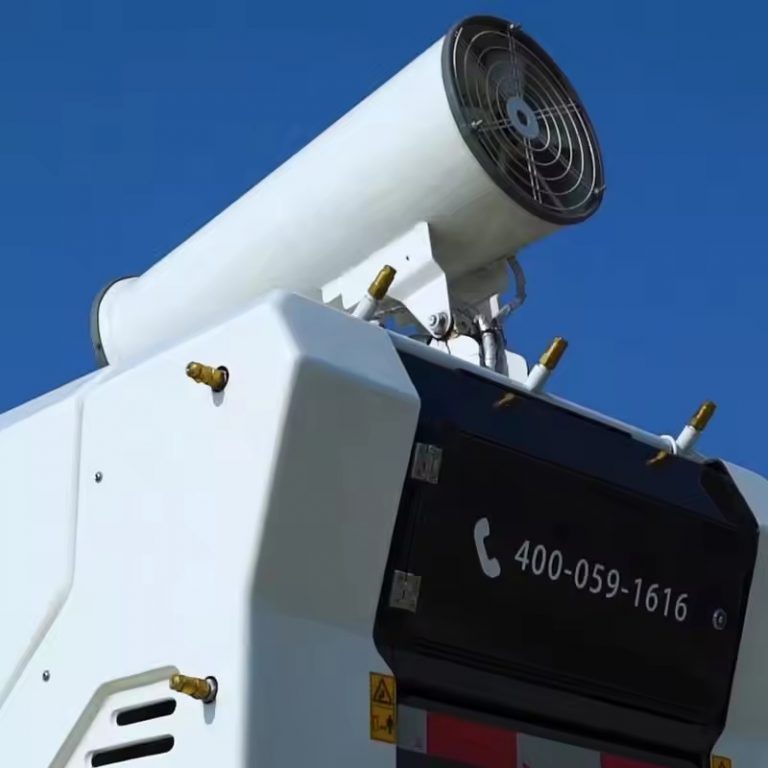

• Optional fog gun spray function, the effective range of fog gun is 20M, and the range of domestic similar products is the longest.
• The high-pressure floor washing plate can be used to deeply clean various road surfaces, stone floors, etc. The floor washing plate can automatically recover and discharge sewage, ensuring that there is no sewage left in the operating area, and the cleaning effect can reach the standard of “sitting on the ground”.
